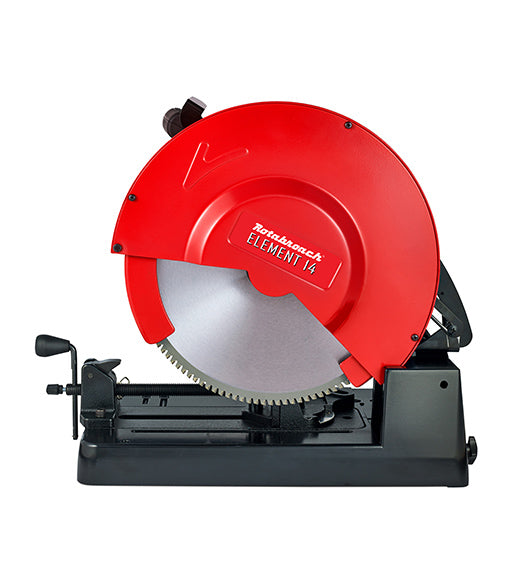

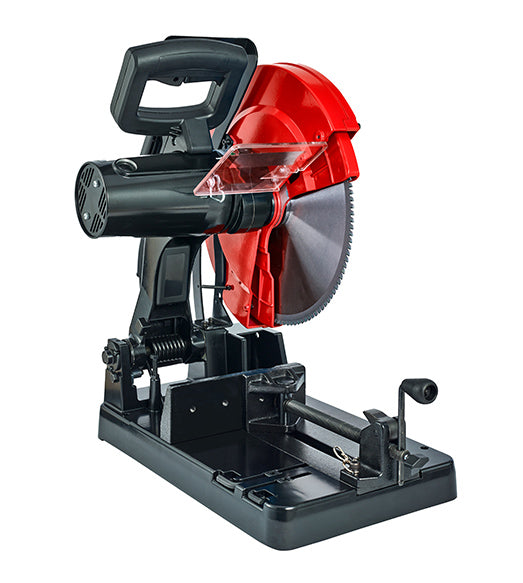

Element 14 chop saw
- Rotabroach’s Element 14 Chop Saw makes light work of cutting steel plate, square tube, angle iron, pipe, tube and sheet metal
- Quicker, more accurate and safer than conventional abrasive cutting saws
- Produces a cut that is virtually spark free with no burr
- Swivel Vice enables 45º cutting
- Optional blades enable cutting in steel, aluminium and other ferrous and non ferrous metals
Specification
| Model Number | Element 14/1 |
| Motor Specification | 110V 2200W |
| No Load RPM | 1300 RPM |
| Cutting Capacity Box Section | 120mm x 120mm |
| Cutting Capacity Rectangular Section | 95mm x 185mm |
| Cutting Capacity Pipe | 130mm |
| Overall Dimensions | 565mm x 285mm x 405mm |
| Machine Weight | 24kg |
| Safety Measures | Overload Switch / Retracting Blade Guard / Quick Release Metal Chip Collection Chamber |
Product Video
Rotabroach Element 14 Chop Saw
The Rotabroach Element 14 Chop Saw makes light work of cutting steel plate, square tube, angle iron, pipe, tube and sheet metal. Quicker, more accurate and...
