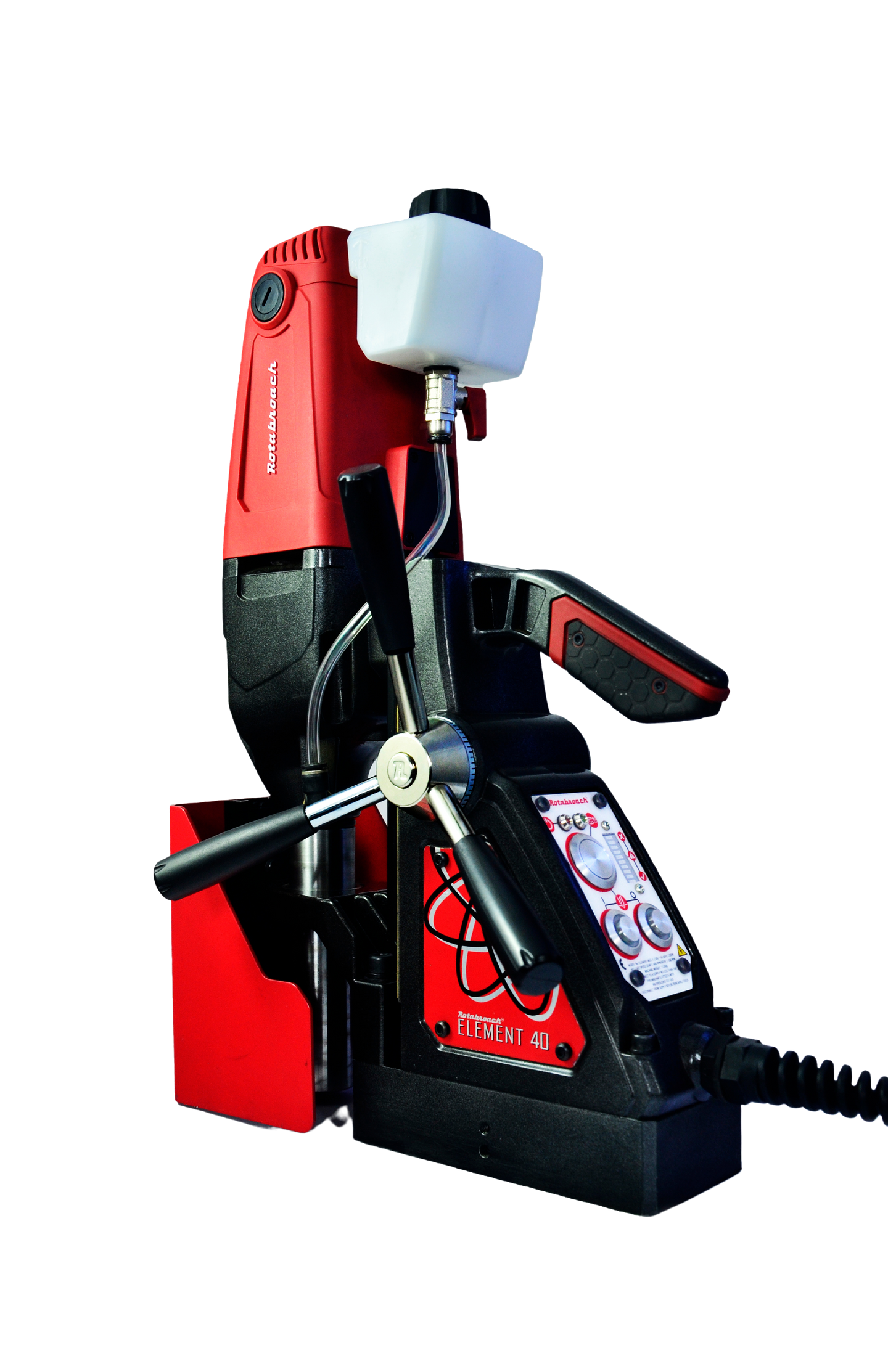

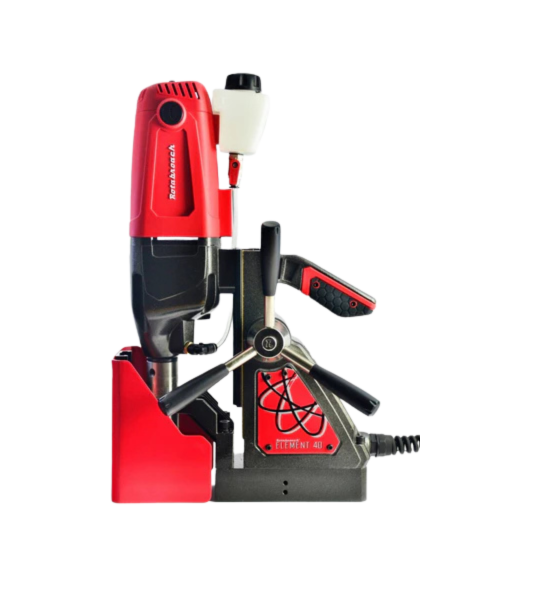

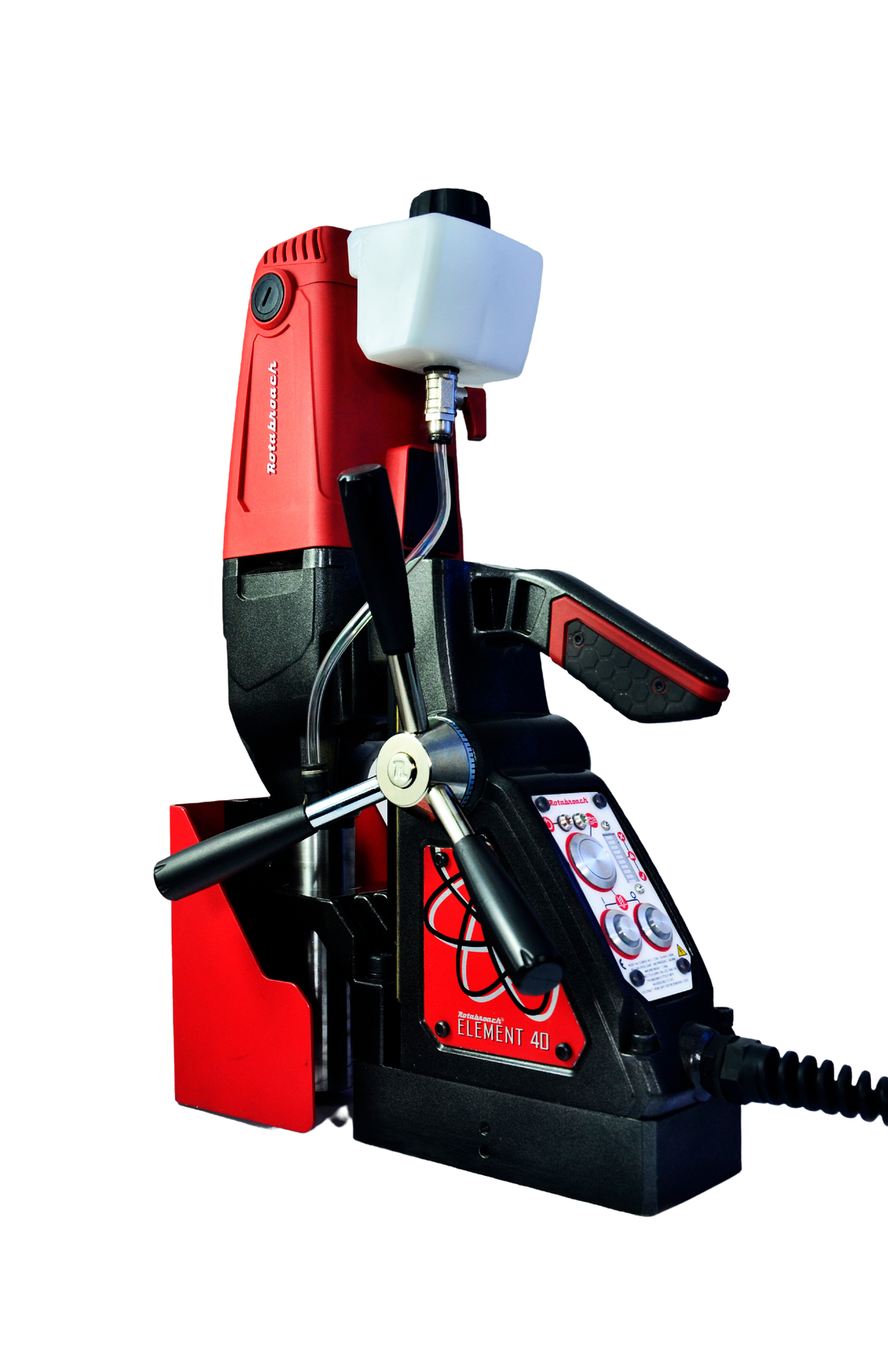

The Element 40 has a powerful, two speed mechanical gearbox. Small in size but this machine revels in the hardest of environments. Suitable for drilling up to 40mm diameter by 50mm depth.
Specification
| Model Number | Element 40/1 / Element 40/3 |
| Motor Specification | 110V 1200W / 230V 1200W |
| No Load RPM | Low Gear:300RPM High Gear:600RPM |
| Max Hole Cutting Capacity | ø40 x 50mm deep |
| Drill Chuck Capacity | ø13mm |
| Overall Dimensions | Height: 510mm / Width: 185mm with Capstan / Length: 285mm with Guard |
| Machine Weight | 13.65kg |
| Magnetic Adhesion | 10,000N |
| Magnet Size | 180mm x 90mm |
| Safety Features | Cutsmart™ Technology / Fixed Guard / Magnetic Detection / Mechanical Clutch |
