- Pneumatic drive and permanent magnetic base eliminates the need for electric power.
- Compact - only 185mm high.
- Light-weight.
- Great safety features
- Strong permanent magnet base.

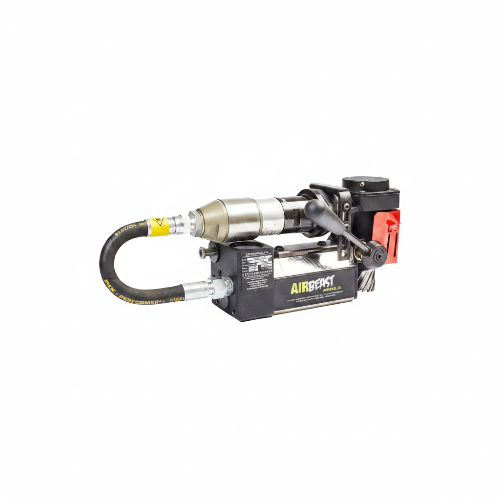

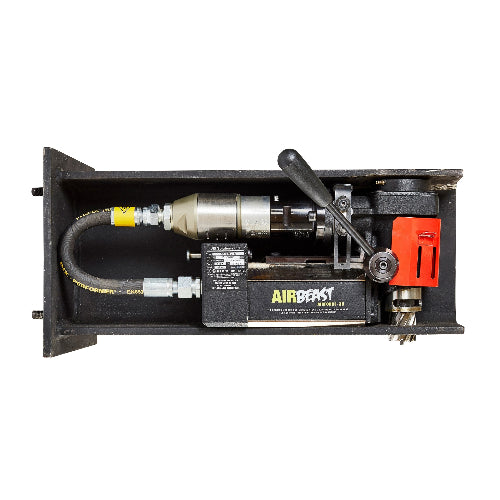

A compact pneumatic drill ideally suited to space restricted and hazardous environments such as oil drilling platforms, mining industry, shipbuilding or petrochemical industry. Combining a pneumatic drive and permanent magnetic base eliminates the need of electric power supply.
Specification
| Model | AirBeast 35 |
| Weight | 17 kg |
| Height fixed | 185 mm |
| Spindle | 19 mm |

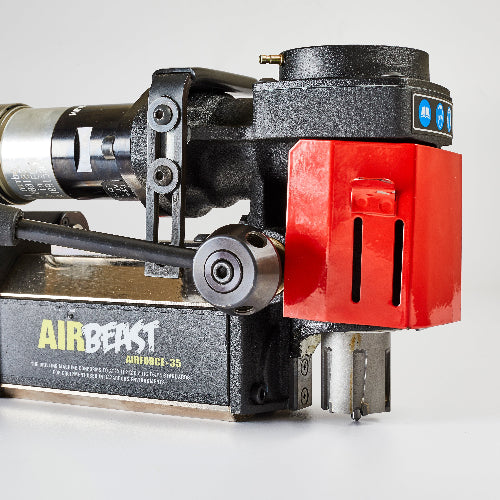

| Cutter Capacity | 35 mm Ø x 1" depth of cut |
| Max Stroke | 39 mm |
| Air consumption | 1400 I/min (50 CFM) |
| Motor Power | 800 w |
| Motor speed under load | 240 rpm |
| Length x Width | 480 x 168 mm |

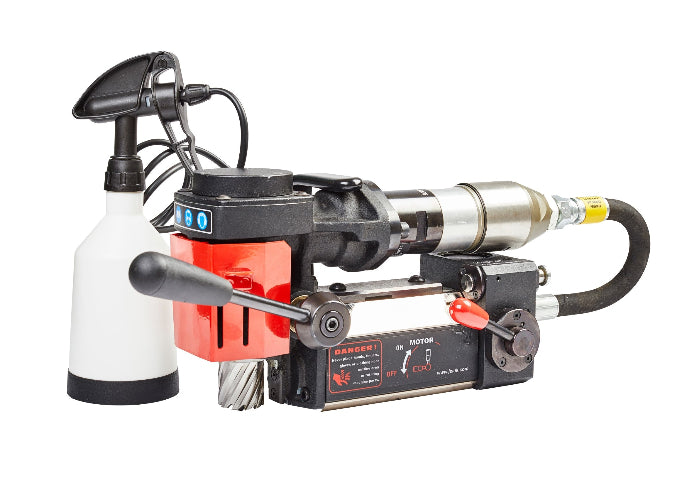

| Cooling System | Through Spindle |
| Magnetic Base Dimensions | 80 mm x 80 mm x 143 mm |
| Magnet Deadlift | 663 kg on 1" Plate (6500 N) |
| Shipping Weight | 23.4 kg |
| Shipping Dimensions | 510 x 320 x 160 mm |
Product Video
