Capable of safely cutting thin materials and painted surfaces from as little as 3mm thick.
- Produces holes up to 35 mm diameter.
- Suitable for drilling painted steel plates.
- Compact size and weight - ideal for site work.
- Internal coolant reservoir - ensuring maximum cutter life.
- Self correcting slide rails - for maintenance free operation.
- Light-weight - only 11.7 kg.
- Hidden motor cable - for added protection.
Specification

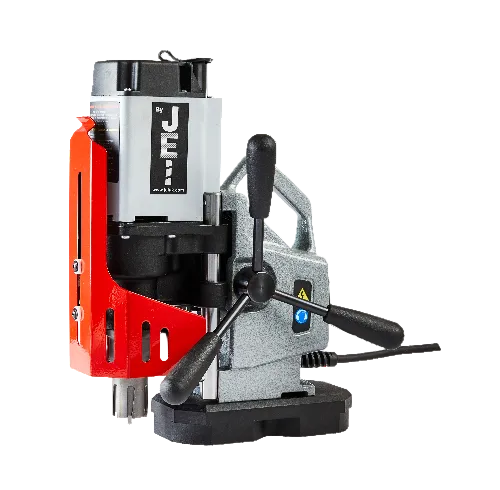

| Model | MiniBeast™ Thin Steel |
| Weight | 11.7 kg |
| Max Stroke | 70 mm |
| Cutter Capacity | 35 mm Ø x 2” Depth |
| Twist Drill Capacity | 12 mm with optional set |
| Height Min/Max | 305 / 380 mm |
| Length x Width | 290 x 166 mm |
| Magnetic Base L x W | 220 x 100 mm |
| Magnet Deadlift | 900 kg on 1” Plate (9000 N) |
| Min. Material Thickness | 3 mm |
| Voltage | 110 V/ 240 V |
