Features a permanent magnetic base that remains attached in the event of a power failure.
- Separate permanent dead lift magnet - requiring no electric power.
- Produces holes up to 35 mm diameter.
- Compact size and weight - ideal for site work.
- Self correcting slide rails - for maintenance free operation.

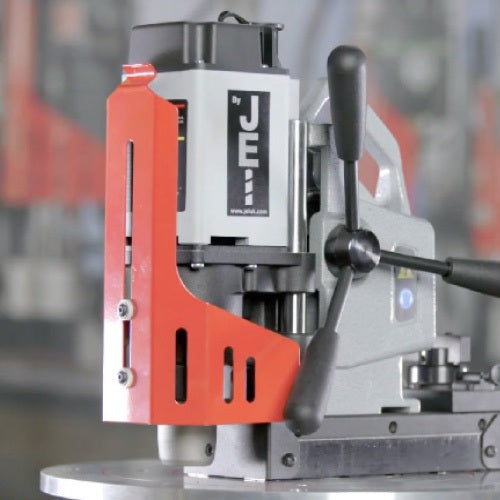

- Internal coolant reservoir - ensuring maximum cutter life.
- Light-weight - only 15 kg.
- Hidden motor cable - for added protection.

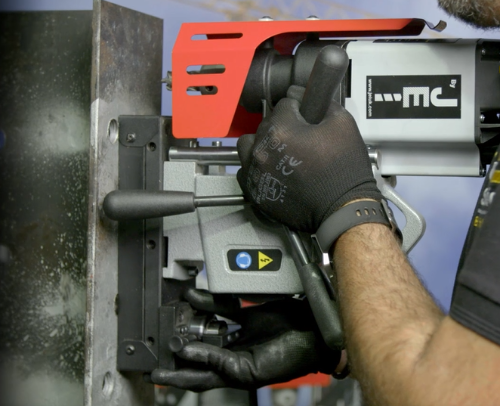

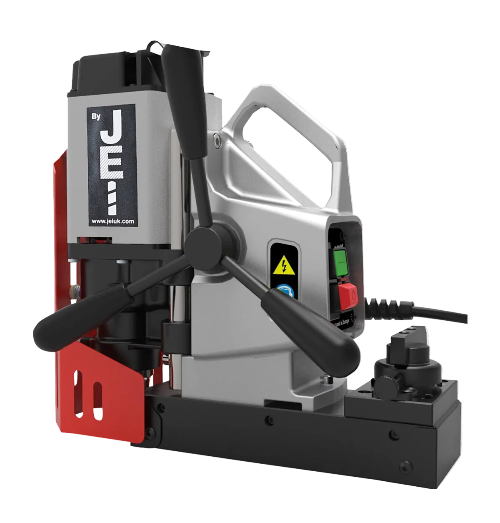

The MiniBeast™ Safe-base by JEI is a compact and durable magnetic drilling machine featuring a permanent magnetic base, which will remain attached to the steel plate in the event of a power failure, protecting the machine and operator.
Specification
| Model | MiniBeast™ Safe-base |
| Weight | 15 kg |
| Max Stroke | 70 mm |
| Cutter Capacity | 35 mm Ø x 35 mm Depth |
| Height min/max | 320 / 390 mm |
| Length x Width | 325 x 185 mm |
| Magnetic Base L x W | 245 x 215 mm |
| Magnet Deadlift | 600 kg on 1” Plate (6000 N) |
| Min. Material Thickness | 10 mm |
| Voltage | 110 V / 240 V |
