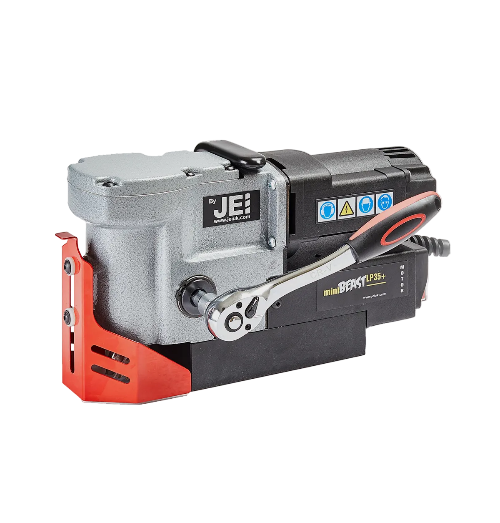

Low Height/ Right Angle magnetic drilling machine.
- Ultra-low fixed working height only 176 mm.
- Extremely low weight of just 9.5 kg.
- Compact design perfectly suited to space restricted areas.
- Maximum drilling diameter of 35 mm with annular cutters.
- Will accept standard length (35 mm) tungsten carbide annular cutters.
- Positive quill drive for close tolerance holes.
- Accepts short series twist drills with 19.05 mm (3/4”) weld on shank.
- Integrated safety guard.
- Detachable feed ratchet handle can be fixed from either left or right side.
- Lifting handle for easy transportation.

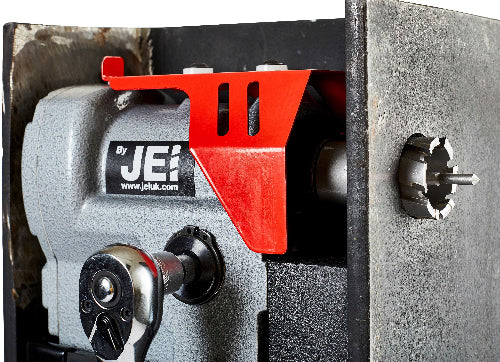

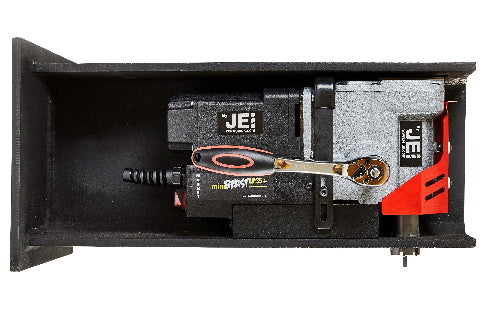

With its compact design, the MiniBeast™ LP35+ is ideal for drilling in those smaller spaces. The LP35+ packs a powerful punch at only 176 mm in height and 9.5 kg in weight, making it perfect for structural site work.
Specification
| Model | MiniBeast™ LP35+ |
| Spindle | 19 mm |
| Weight | 9.5 kg |
| Max Drilling | 35 mm |
| Max. Drilling Depth | 20 mm with HSS Turbo™ Steel annular cutter. 32 mm with Turbo™ Tough TCT annular cutter |
| Twist Drill Capacity | 12 mm Ø with optional Turbo™ Twist drills |
| Countersink Capacity | 30 mm |
| Motor | 920 W |
| RPM | 1 Fixed Speed no load 520 RPM loaded 350 RPM |
| Height (Fixed) | 176 mm |
| Length x Width | 380 x 147 mm |
| Magnetic Base L x W | 165 x 80 mm |
| Magnet Deadlift | 910 kg on 1” Plate (8900 N) |
| Noise Level | < 90dB |
| Vibration Level | < 2.5 m/s2 |
| Voltage | 110 V / 240 V |
| Shipping Weight | 12.4 kg |
| Shipping Dimensions | 490 x 380 x 190 mm |
Product Video
