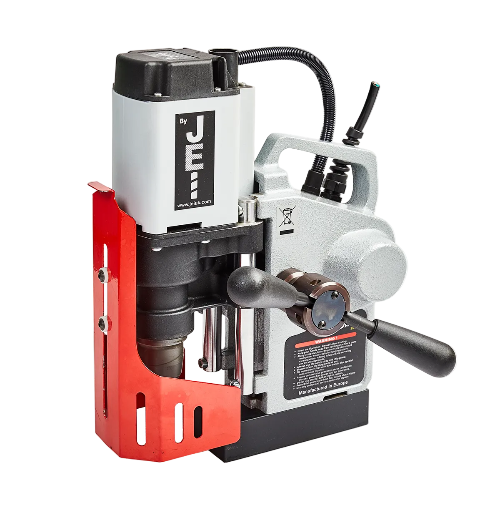

The world's smallest automatic magnetic drilling machine with all the features of the Minibeast™️.
- Compact size and weight - ideal for site work.

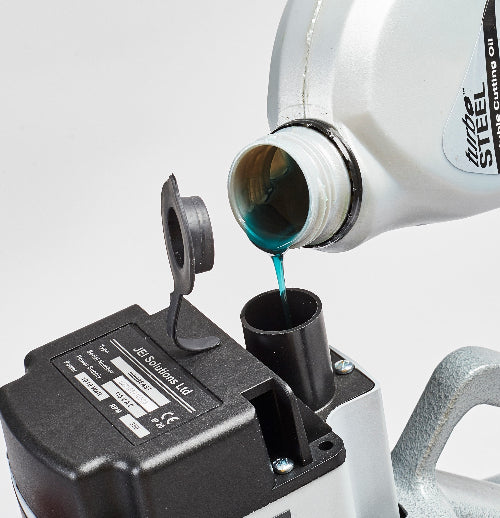

- Internal coolant reservoir - ensuring maximum cutter life.
- Self correcting slide rails - for maintenance free operation.
- Light-weight - only 13 kg.
- Easier operation – lets the machine control the task.
- Increased productivity – one operator can control several machines at one time.
- Improved tool life – let the machine do the cutting. More holes per tool with better hole results.
- Protects against misuse of machine and wearing parts – no manual overloading of the motor.
- Longer overall life of the machine.
The MiniBeast™️ Auto is ideal for high production environments, cutting more holes in less time. Easy, maintenance-free operation means this can control the task for greater productivity.
Specification
| Model | MINIBEAST™ AUTO |
| Spindle | 19 mm |
| Weight | 13kg |
| Cutter Capacity | 35 mm Ø x 2" depth of cut |

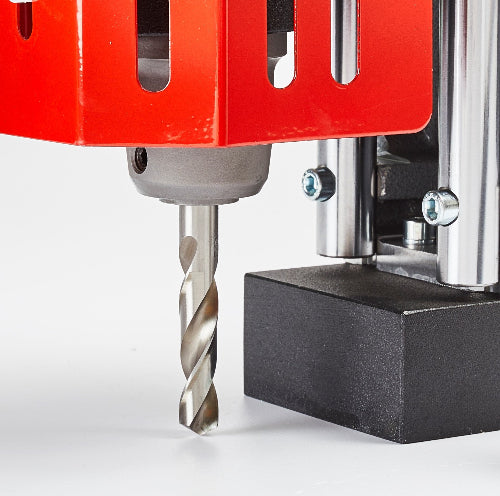

| Twist Drill Capacity | 12 mm Ø with optional twist drills |

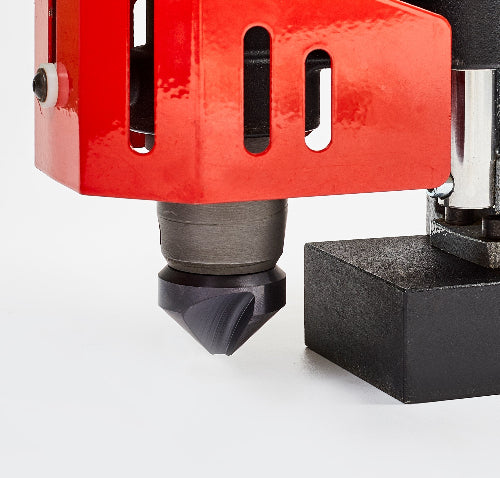

| Countersink Capacity | 30 mm |
| Motor | 1010 W |
| Height Min/Max | 307 / 377 |
| Length | 285 mm |
| Width | 221 mm |
| RPM | 1 Fixed Speed (no load 520 RPM, loaded 350 RPM) |
| Magnetic Base Dimensions | 160 mm x 80 mm |
| Magnet Deadlift (on 25mm plate) | 980 kg on 1" Plate (9600 N) |
| Noise / Vibration Level | < 90dB / < 2.5 m/s2 |
| Voltage | 110 v / 240v |
| Shipping Weight | 19.10 kg |
| Shipping Dimensions | 360 x 350 x 260 mm |
