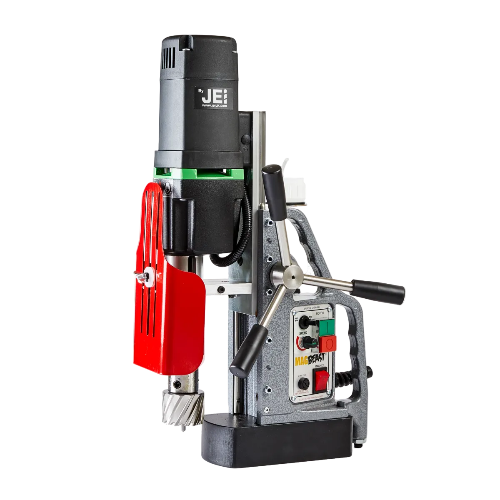

MagBeast® HM50TS with Swivel Base, Variable Speed and Reverse for Tapping
A durable, dependable heavy duty 2 morse taper drilling machine with variable speed and reverse, making it ideal for tapping applications with the additional feature of a 360° swivel base.

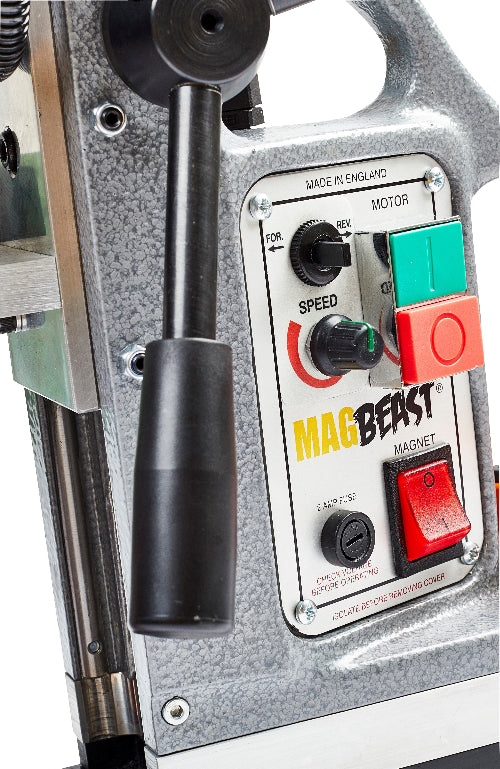

- Variable speed, high torque motor. Ideal for countersinking and reaming.
- Reverse speed motor ideal for threading (tapping) holes.
- Lightweight. Only 14 kg yet can cut up to 50 mm diameter.

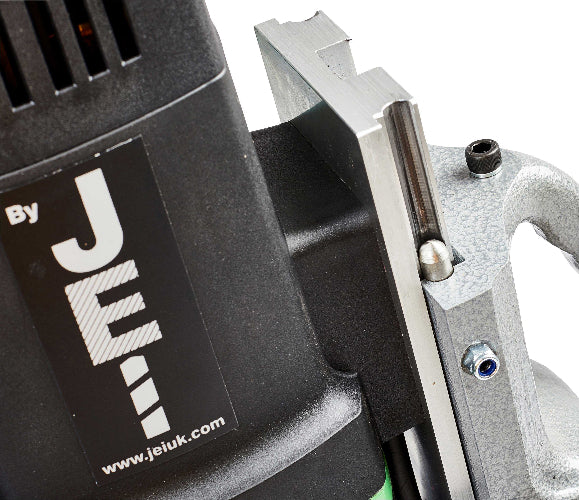

- Maintenance friendly twin slide rails.
- No wearing parts and adjustment free operation.
- With full 360° swivel base.
- Ideal for drilling holes close together without moving the machine.
- Ideal for special project work.
A heavy-duty 2 morse taper drilling machine, the MagBeast® HM50TS is ideal for countersinking and reaming. A lightweight option, weighing at only 14kg, that can cut up to 50 mm in diameter.
Specification
| Model | HM50TS (WITH SWIVEL BASE) |
| Spindle | MT2 |
| Weight | 16.5 kg |
| Max Stroke | 200 mm |

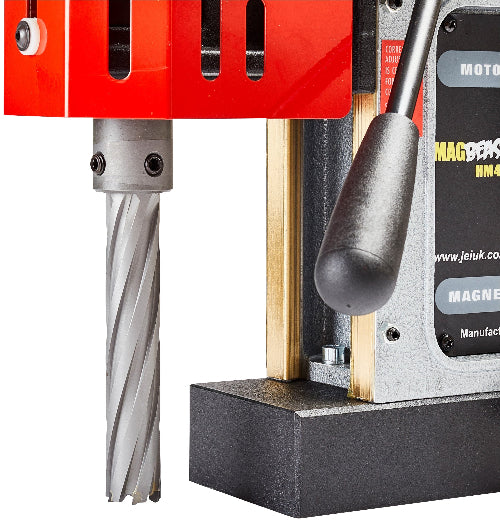

| Cutter Capacity | 50 mm Ø x 4” depth of cut |

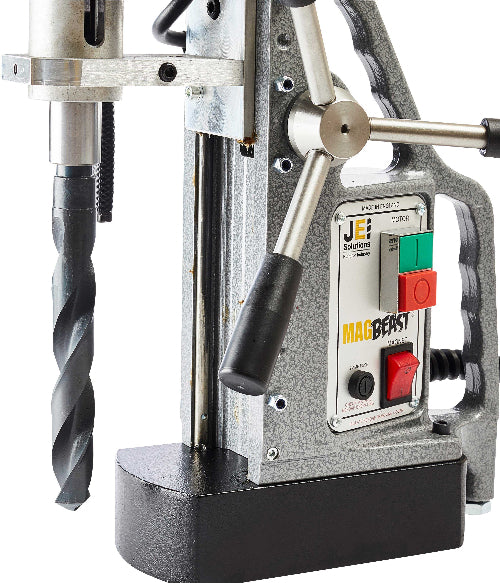

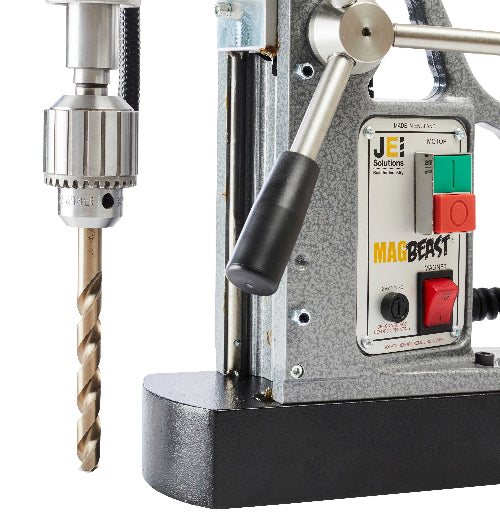

| Twist Drill Capacity | 13 mm with 2MT Chuck ~ 23 mm with 2MT Twist Drill |

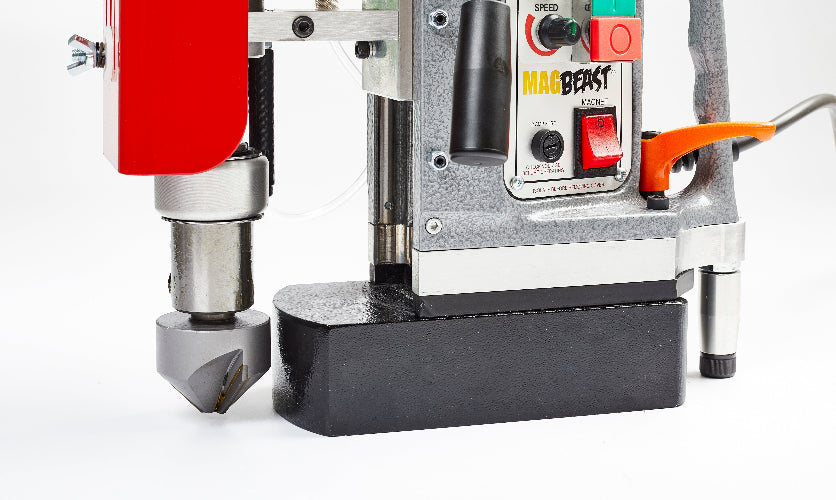

| Countersink Capacity | 40 mm |

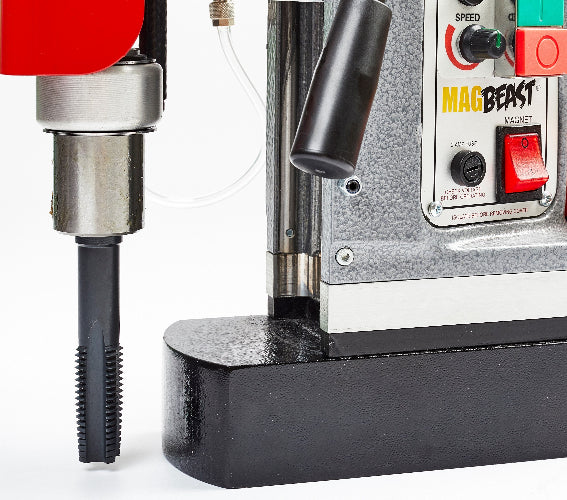

| Tapping Capacity | M20 |

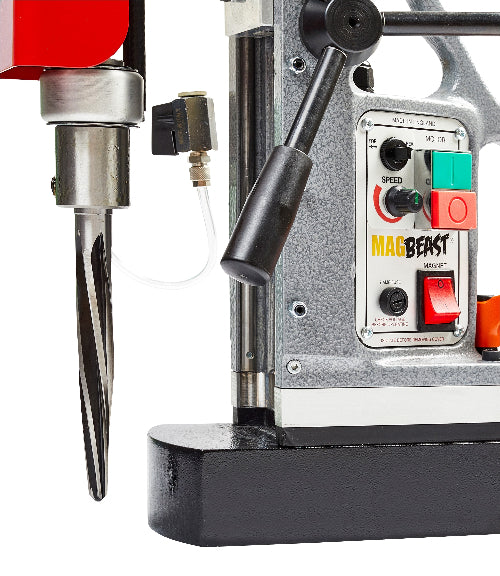

| Reaming Capacity | 22 mm (19 mm shank) |
| Motor | 1150 W (110 V) 1250 W (240 V) |
| RPM | 2 Variable Speeds, 180–430, 100–250 RPM |

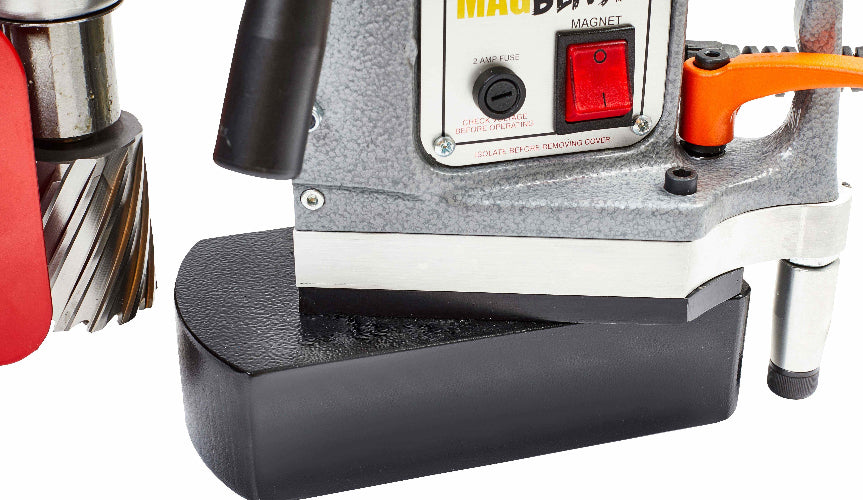

| Swivel Base | 360 Degree |
| Height min/max | 390 / 590 mm |
| Length x Width | 280 x 170 mm |
| Magnetic Base L x W | 90 x 180 mm |
| Magnet Deadlift | 1250 kg on 1” Plate (12000 N) |
| Noise Level | < 90dB |
| Vibration Level | < 2.5 m/s2 |
| Voltage/ Part no | 110 V – DRILL-HM50TS ~ 240 V – DRILL-HM50TS/2 |
| Shipping Weight | 22 kg |
| Shipping Dimensions | 490 x 380 x 200 mm |
Product Video
