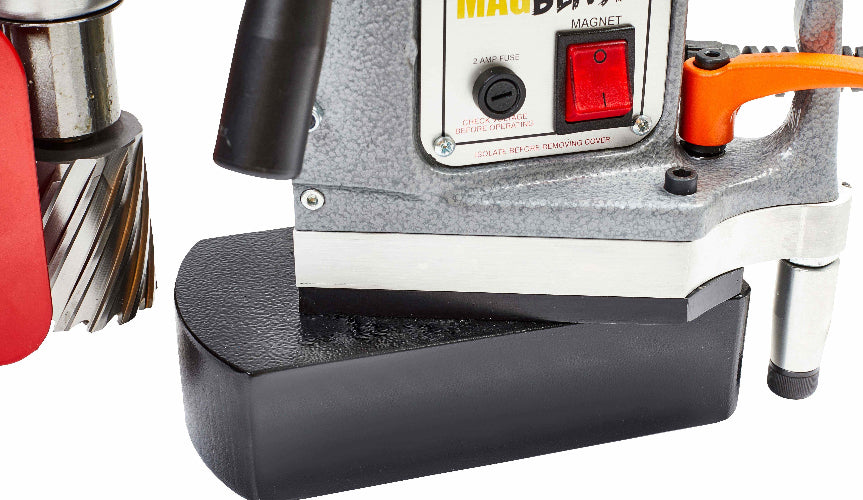

A durable, dependable heavy duty 2 morse taper drilling machine with full 360° swivel base.
- Heavy duty 1150 W motor – enables larger cutting capacity.
- Weighs only 14 kg with a 50 mm cutter capacity – unrivalled weight to cutting capacity ratio.
- 150 mm total drill travel – facility to use extra-long cutters.

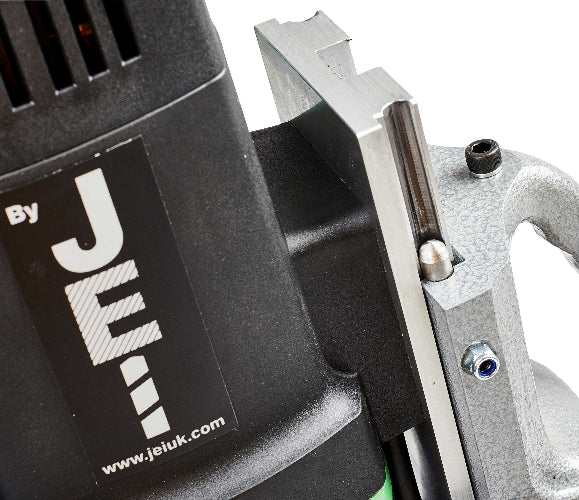

- Maintenance friendly twin slide rails – no wearing parts and adjustment free operation.
- Spoke handles can be fitted on left or right side for operator convenience.
- Ideal for drilling holes close together without moving the machine.
- Ideal for special project work.

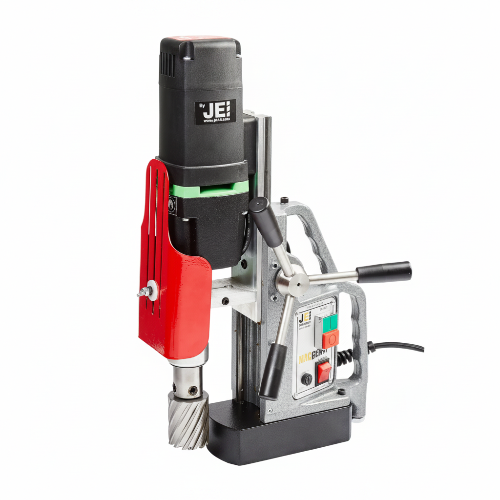

Rely on the expert capabilities of the MagBeast® HM50S. Featuring extra long drill travel, ideal for 100 mm long cutters, and a 50 mm diameter cutting capacity.
Specification
| Model | HM50S (with Swivel Base) |
| Spindle | MT2 |
| Weight | 16.5 kg |
| Max Stroke | 200 mm |

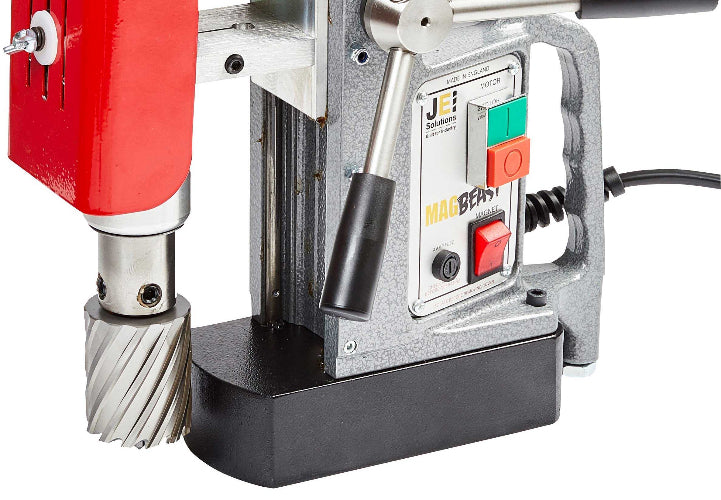

| Cutter Capacity | 50 mm Ø x 4” depth of cut |

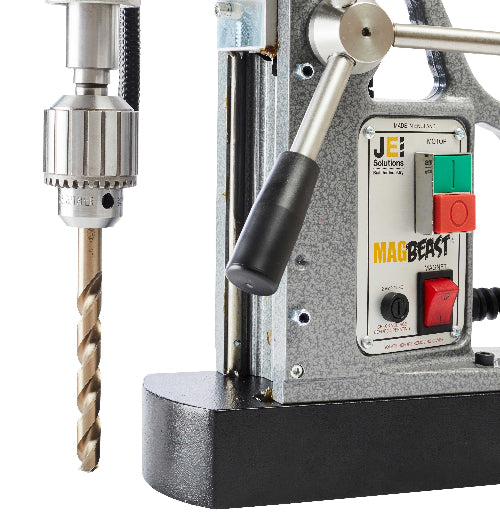

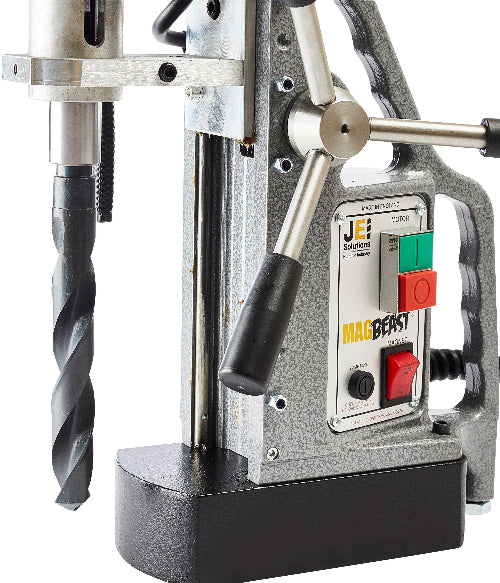

| Twist Drill Capacity | 13 mm with 2MT Chuck / 23 mm with 2MT Twist Drill |
| Countersink Capacity | 40 mm |
| Reaming Capacity | 22 mm (19 mm shank) |
| Motor | 1150 W |
| RPM | No load 465/720 RPM Loaded 250/450 RPM |
| Swivel Base | 360 degree swivel base |
| Height min/max | 390 / 590 mm |
| Length x Width | 280 x 170 mm |
| Magnetic Base L x W | 90 x 180 mm |
| Magnet Deadlift | 1250 kg on 1” Plate (12000 N) |
| Noise Level | < 90dB |
| Vibration Level | < 2.5 m/s2 |
| Voltage | 110 V / 240 V |
| Shipping Weight | 20.5 kg |
| Shipping Dimensions | 490 x 380 x 200 mm |
Product Video
