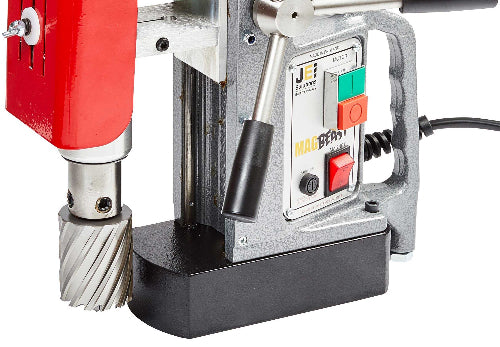

A lightweight and powerful magnetic drilling machine for maximum performance with a full 360° swivel base.
- Powerful 1100 W motor – enabling 40 mm cutter capacity
- Weighs only 12 kg with a 40 mm cutter capacity – unrivaled weight to cutting capacity ratio.

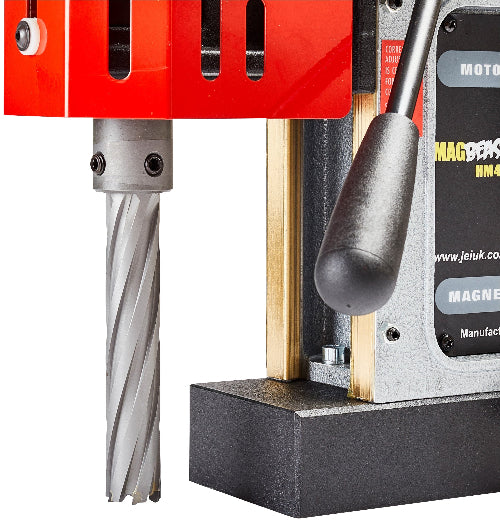

- 170 mm total drill travel – facility to use extra-long cutters.
- Maintenance friendly twin slide rails – no wearing parts and adjustment free operation.
- Spoke handles can be fitted on left or right side for operator convenience.
- Easily adapted to use with additional chuck and adaptor kit to accept twist drills up to 13 mm (part no - JEICA-13MM/19).

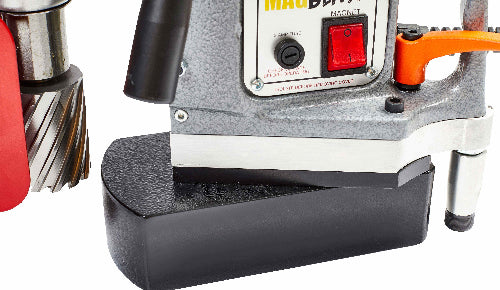

- 360° swivel base.
- Ideal for drilling holes close together without moving the machine.
- Ideal for special project work.

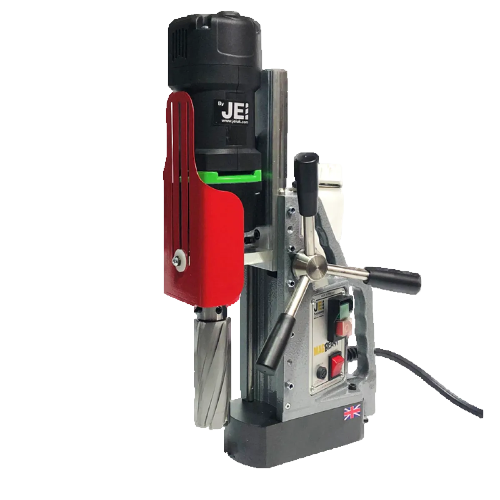

Rely on the expert capabilities of the MagBeast® HM40EX Swivel. Featuring extra long drill travel, ideal for 100 mm long cutters, and a 40mm diameter cutting capacity.
Specification
| Model | HM40EX SWIVEL |
| Spindle | 19 mm |
| Weight | 12 kg |
| Cutter Capacity | 40 mm Ø x 110 mm depth of cut |
| Twist Drill Capacity | 13 mm Ø with optional attachment (part no - JEICA-13MM/19) |
| Countersink Capacity | 40 mm |
| Motor | 1100 W |
| RPM | No load 720 RPM Loaded 450 RPM |
| Swivel Base | 360 degree |
| Height min/max | 330 / 510 mm |
| Length x Width | 280 x 165 mm |
| Magnetic Base L x W | 85 x 170 mm |
| Magnet Deadlift | 1100 kg on 1” Plate (10750 N) |
| Noise Level | < 90dB |
| Vibration Level | < 2.5 m/s2 |
| Voltage | 110 V 240 V |
| Shipping Weight | 16.5kg |
| Shipping Dimensions | 470 x 360 x 180 mm |
