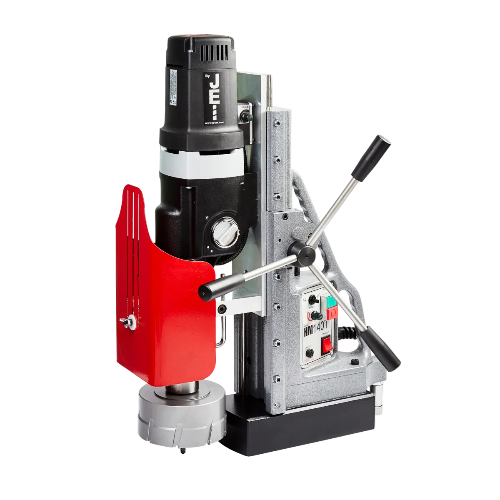

A durable, heavy duty 4 MT powerhouse designed for many hole-making applications.
- Heavy duty 2300 watt, variable speed motor - enables larger cutting capacity.
- Weighs only 35 kg - a one man job to position and operate machine

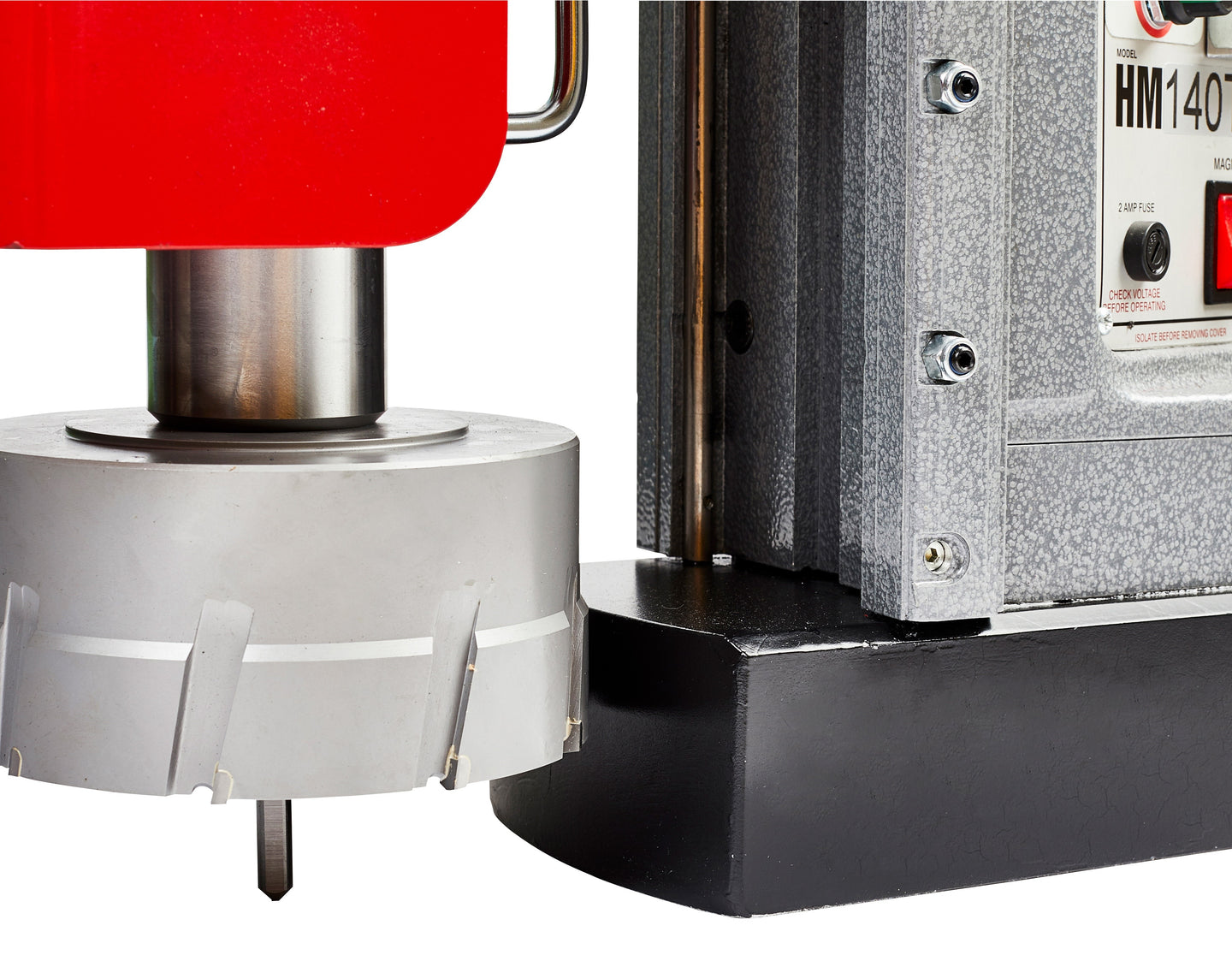

- 140 mm cutter capacity - unrivaled weight to cutting capacity ratio.
- 300 mm total drill travel - facility for extra long cutting depth and stroke

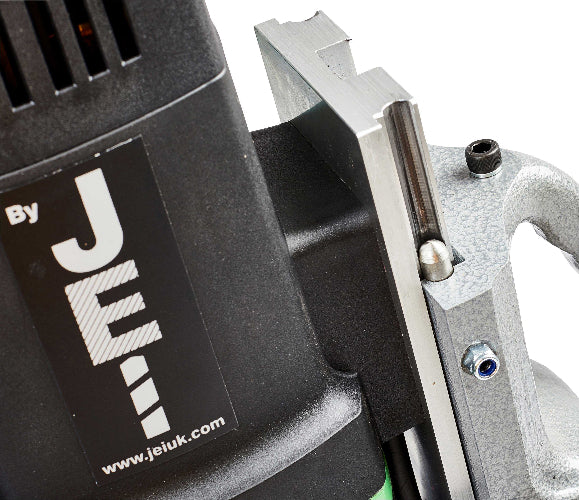

- Maintenance friendly twin slide rails - no wearing parts and adjustment free operation.

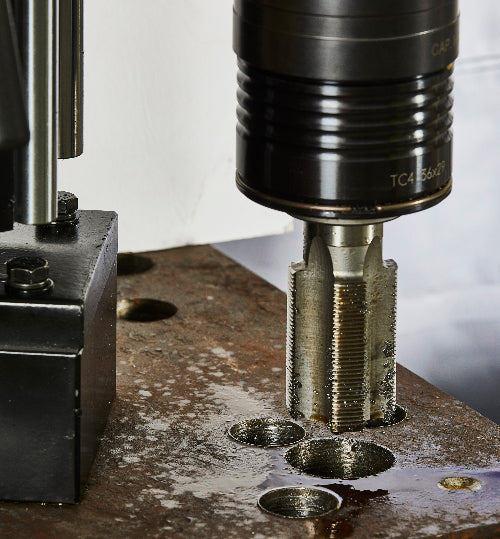

- Integral forward/reverse operation - Ability to tap pre-drilled holes up to M44

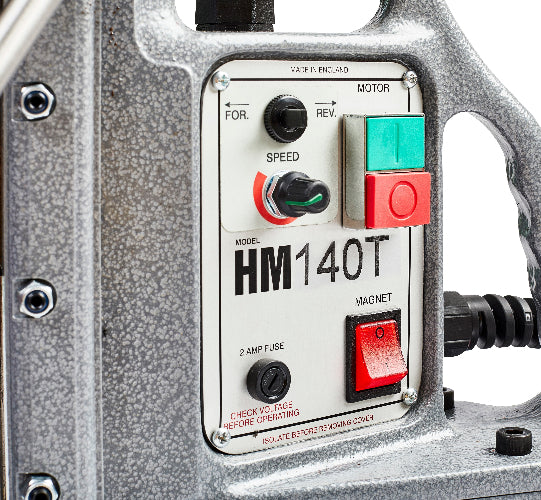

- Built in soft start Motor switch - Provides protection to motor when tapping

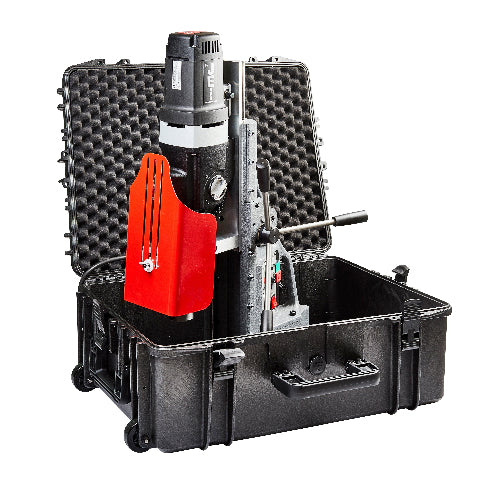

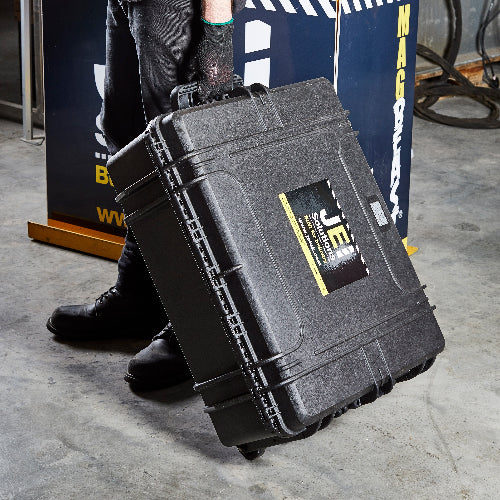

- Complete with robust carrying case with wheels - easy movement to site
With built in forward/reverse and variable speed, the HM140T has the ability to tap/thread pre-drilled holes up to M44. Weighing only 35 kg, this machine has an unrivalled weight to capacity ratio for a machine of its size and can be lifted into position by one operator.
Specification
| Model | HM140T |
| Weight | 35kg |
| Cutter Capacity | 140mm Ø |
| Twist Drill Capacity | 19 mm with 4MT Chuck ~ 50 mm with 4 MT Twist Drill |
| Countersink Capacity | 80 mm |
| Reaming Capacity | 47 mm |
| Motor | 2300 watts |
| Height Min/Max | 570 / 850 mm |
| Length x Width | 440 x 245 mm |
| RPM | 4 Variable Speeds 30-80/50-120/130-350/ 210-550 RPM |

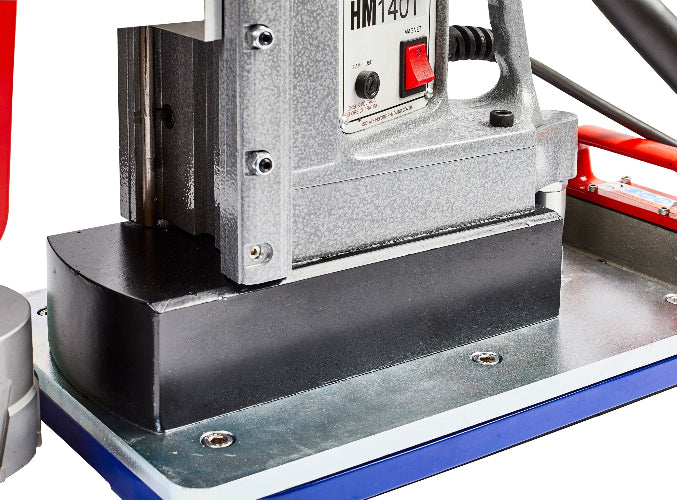

| Magnetic Base (L x W) | 120 x 260 mm |
| Noise Level | < 90dB |
| Vibration Level | < 2.5 m/s2 |
| Voltage/Part no's | 110 V / 240 V |
| Shipping Weight | 50 kg |
| Shipping Dimensions | 650 x 500 x 300 mm |
