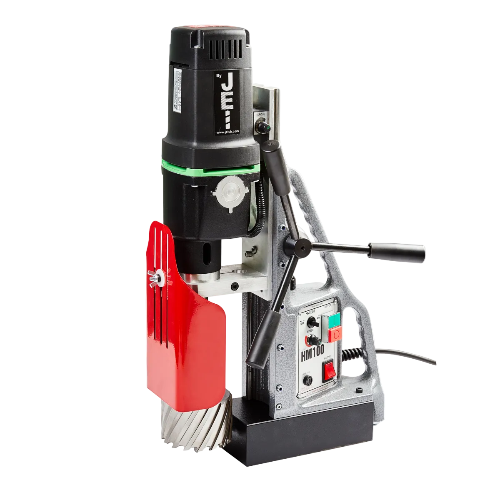

MagBeast® HM100T 3MT Magnetic Drilling Machine with Variable Speed and Reverse
The complete 3MT model, capable of cutting, reaming, counterboring and tapping holes with variable speed and reverse.
- Heavy duty 1800 w motor
- 2 speed variable gearbox with reverse
- 250 mm total drill travel
- Sleek, ergonomic design

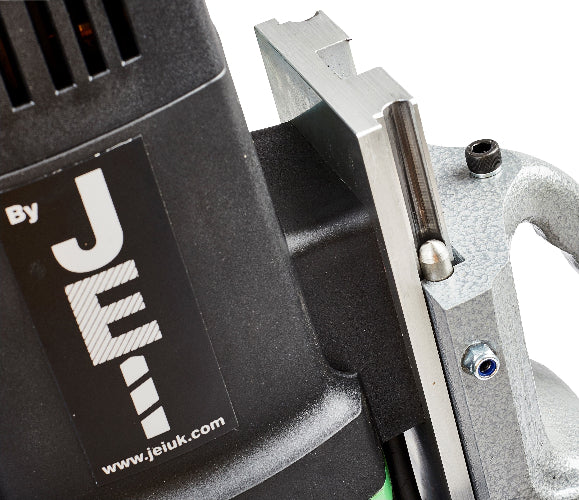

- Maintenance free twin slide rails
- Fixed safety guard

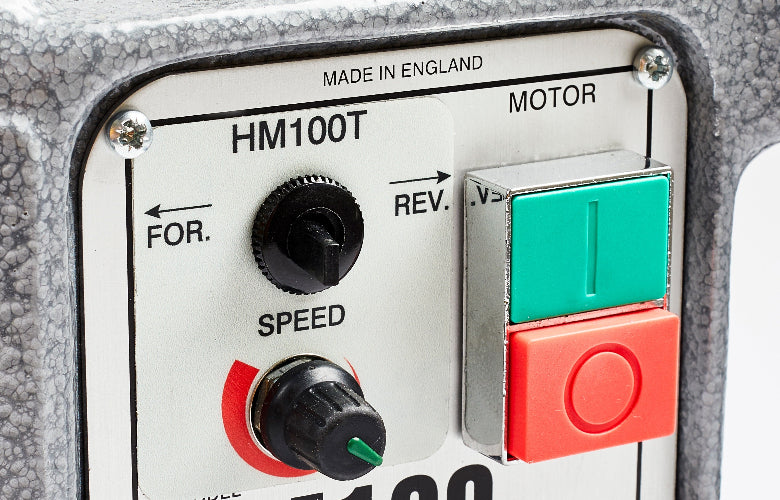

- Simple and effective control panel
- Powerful electromagnetic base

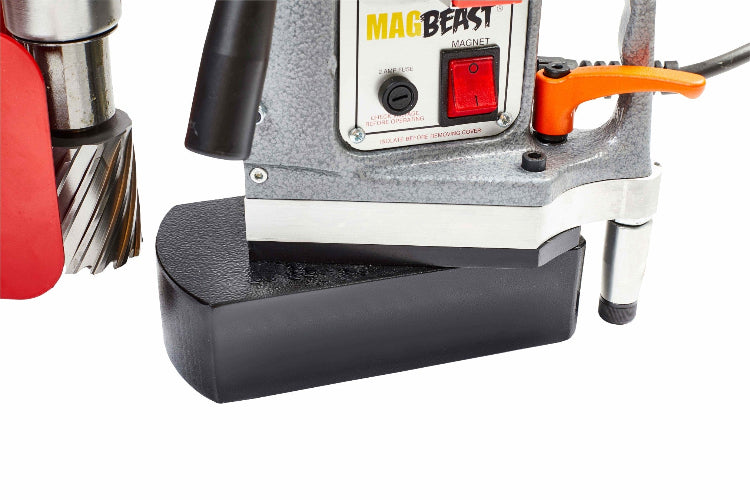

- Optional full 360° swivel base available - The HM100TS
Capable of cutting, reaming, counterboring and tapping holes, the MagBeast® HM100TS is the perfect all-around choice for a variety of applications using simple and efficient electronic controls.
Specification
| Model | HM100T |
| Spindle | MT3 |
| Weight | 23.5 kg |
| Max Stroke | 250 mm |

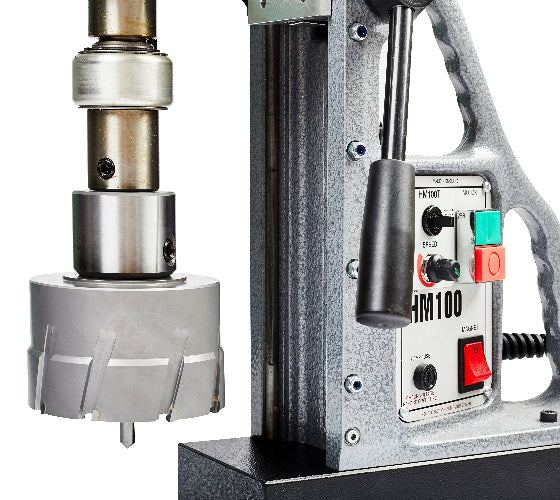

| Cutter Capacity | 100 mm Ø x 6” depth of cut |

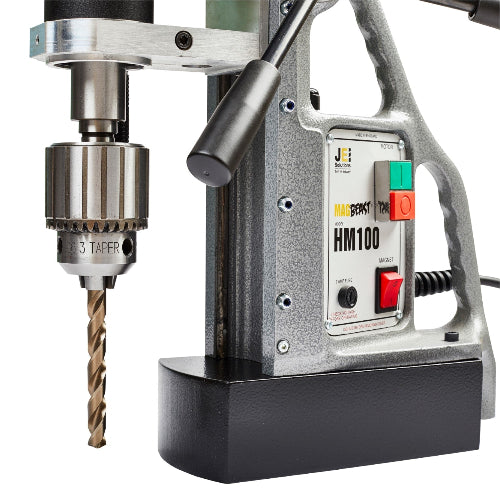

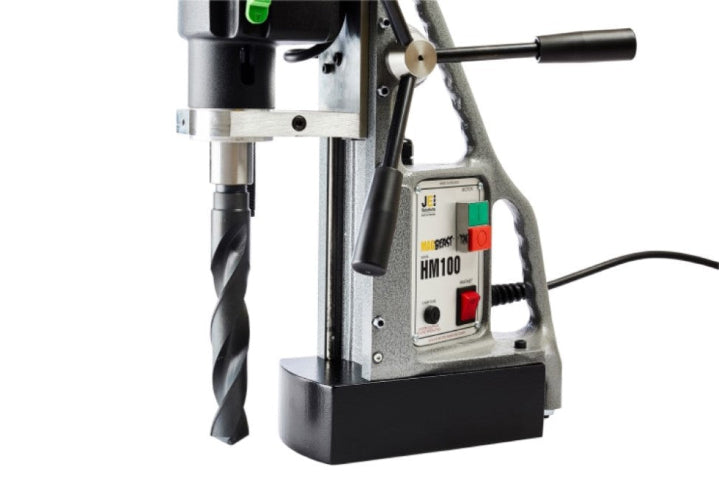

| Twist Drill Capacity | 19 mm with 3MT Chuck ~ 32 mm with 3MT Twist Drill |

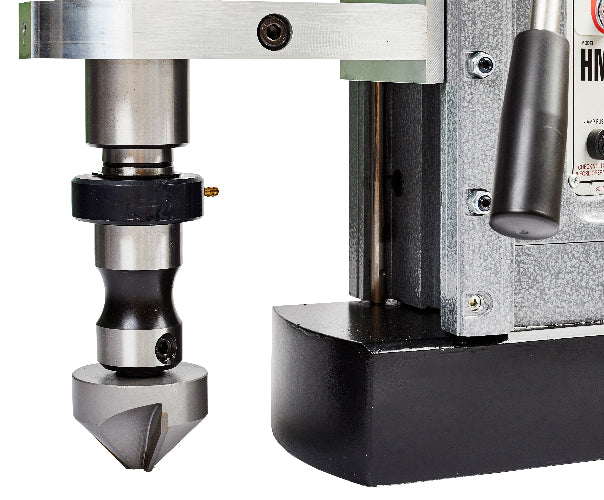

| Countersink Capacity | 55 mm |
| Tapping Capacity | M30 |

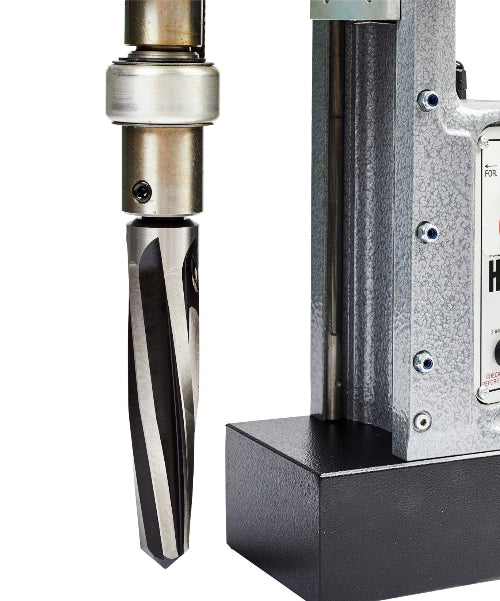

| Reaming Capacity | 39 mm |
| Motor | 1800 W |
| RPM | 2 Variable Speeds (torque control) 60–140 / 200–470 |
| Swivel Base | n/a |
| Height min/max | 450 / 700 mm |
| Length x Width | 345 x 190 mm |
| Magnetic Base L x W | 212 x 102 mm |
| Magnet Deadlift | 2050 kg on 1” Plate (20100 N) |
| Noise Level | < 90dB |
| Vibration Level | < 2.5 m/s2 |
| Voltage |
110 V / 240 V |
| Shipping Weight | 28.65 kg |
| Shipping Dimensions | 571 x 450 x 250 mm |
