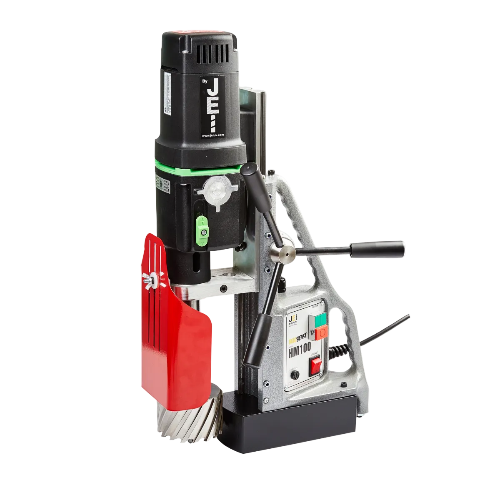

A durable, heavy duty, 3 morse taper drilling machine.
- Heavy duty 1700 W motor. Enables large cutting capacity.
- Weighs only 24 kg and 100 mm cutter capacity. Unrivalled weight to cutting capacity ratio.
- 4 speed gearbox. Ideal for a wide selection of cutting operations.
- 250 mm total drill travel. Facility to use 150 mm (6”) long cutters.

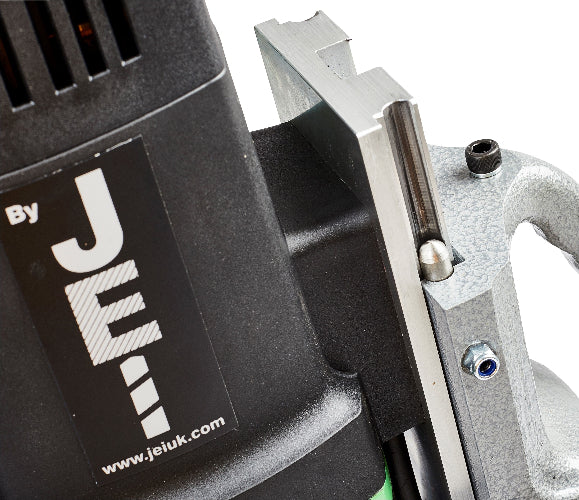

- Maintenance friendly twin slide rails. No wearing parts and adjustment free operation.
- Optional 360º swivel base available - part number DRILL-HM100S
The substantial 1700 W motor on the MagBeast® HM100 enables a large cutting capacity and 4-speed gearbox for those demanding projects. Adjustment-free operation and no wearing parts.
Specification
| Model | HM100 |
| Spindle | MT3 |
| Arbor Bore | 19 mm |
| Weight | 24 kg |
| Max Stroke | 250 mm |

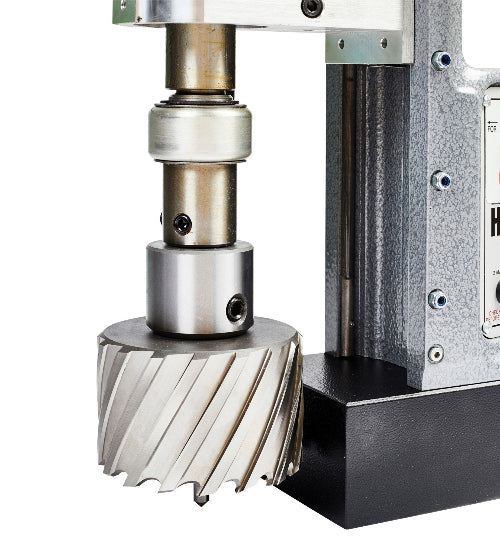

| Cutter Capacity | 100 mm Ø x 6” depth of cut |

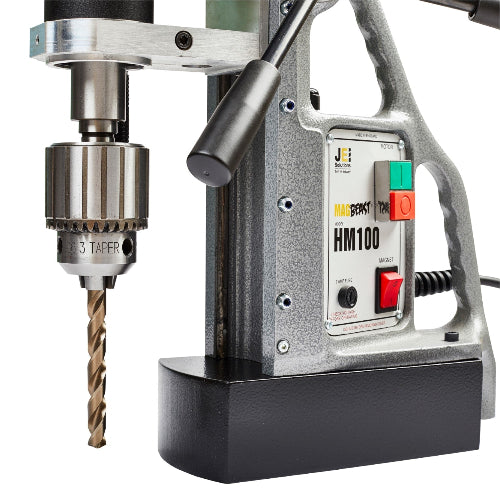

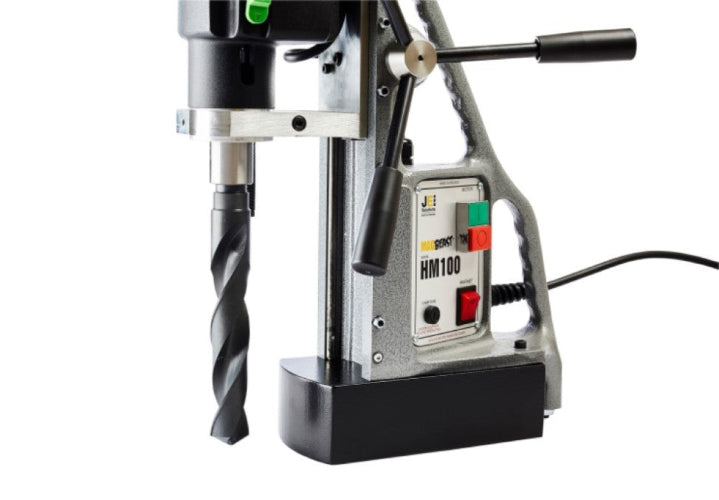

| Twist Drill Capacity | 19 mm with 2MT Chuck / 32 mm with 3MT Twist Drill |

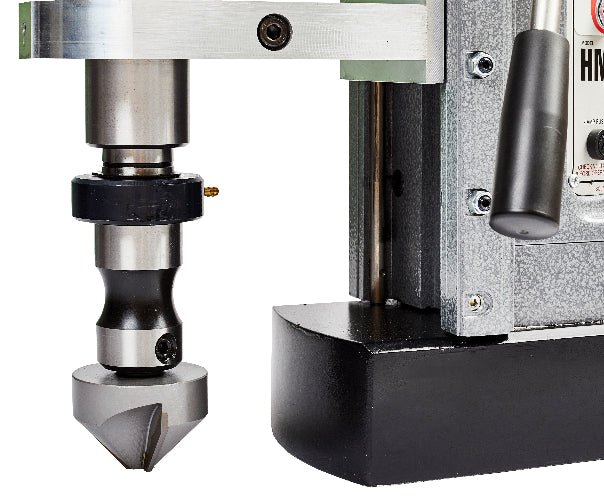

| Countersink Capacity | 55 mm |

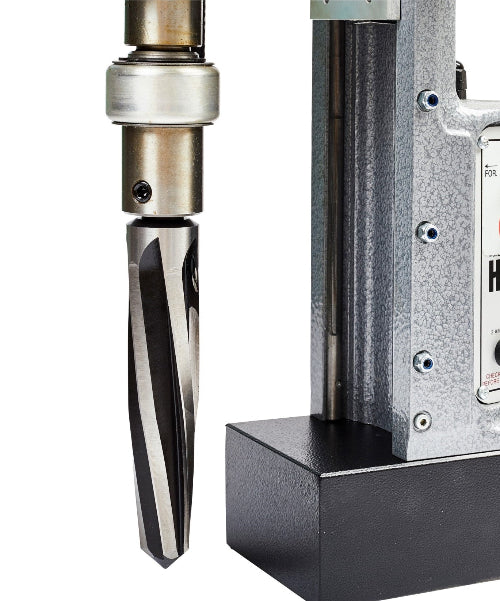

| Reaming Capacity | 39 mm |
| Motor | 1700 W |
| RPM | 4 Fixed Speeds: no load 215/330/460/680 RPM loaded 110/175/245/385 RPM |
| Swivel Base | n/a |
| Height min/max | 450 / 700 mm |
| Length x Width | 345 x 190 mm |
| Magnetic Base L x W | 212 x 102 mm |
| Magnet Deadlift | 2050 kg on 1” Plate (20100 N) |
| Noise Level | < 90dB |
| Vibration Level | < 2.5 m/s2 |
| Voltage | 110 V 240 V |
| Shipping Weight | 29 kg |
| Shipping Dimensions | 571 x 450 x 250 mm |
Product Video
